Lately [The Parallel Port] was requested to try repairing the PoE++ function on a Ubiquiti change that in any other case labored advantageous. This can be a fairly good 24-port rackmounted change with 2.5 Gbit-capable RJ-45 ports and two 10 Gbit SFP+ ports, so by itself it’s fairly helpful, however having the 400 Watt PoE function simply go AWOL nonetheless stings, particularly in case you purchased it new for $800.
With energy utilized the change begins up as regular, together with its 1.3″ contact display that gives direct port data in addition to a flowery screensaver cum QR code for the AR function.
After logging into the change’s BusyBox console it confirmed that every one ports reported unhealthy for the PwrGood standing, and there have been PoE energy standing request errors within the log, however this might be simply the consequence of one thing else. Utilizing a PoE splitter it was confirmed that the PoE performance was certainly lifeless.
After disassembly and a few testing with a multimeter and thermal digicam, a brief and associated scorching spot on the PCB that the PoE energy board connects to was recognized, with the quick persisting after eradicating this PCB from the change. Because the change had suffered a little bit of {an electrical} occasion the TVS diode was checked, but it surely turned out to be advantageous.

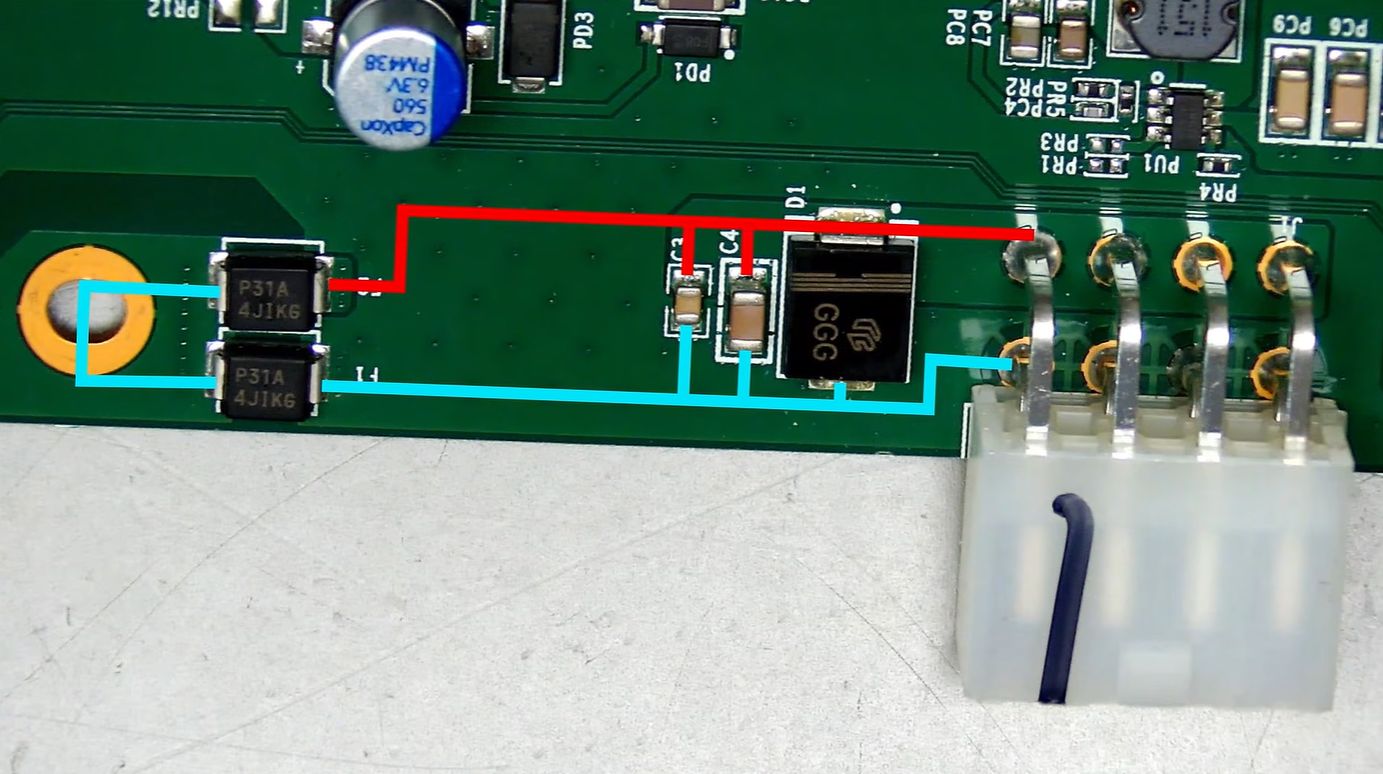

Subsequent to it, marked as fuses, have been protecting thyristor surge safety units (Trisil), functioning as a crowbar machine. These aren’t speculated to be shorted to floor till a surge occasion happens, however these have been certainly each shorted when measured immediately. Clearly they’d taken the brunt of {the electrical} occasion and sacrificed themselves within the course of.
One substitute later of those units the change now fortunately experiences a very good PoE standing and even was in a position to energy a DC fan through the PoE splitter. Even when it wasn’t a very exhausting repair, that is undoubtedly a kind of instances the place understanding how the protecting circuit works can save quite a lot of time in diagnosing and fixing a fault.
